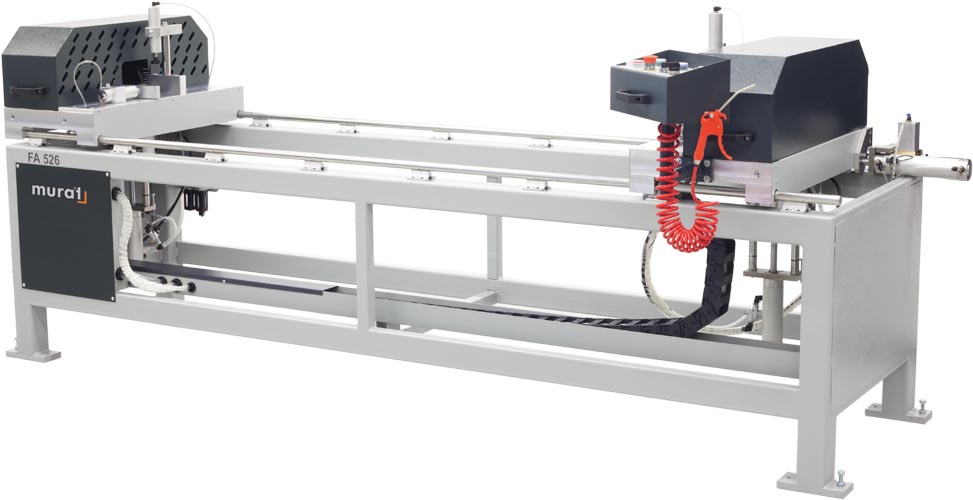

Capacity Product CategoryFA 526 Get offerGet offer Details Technical Information Video Milling of two ends of transom in PVC profiles with single operation. Automatic feed of the milling unit. The movable head is manually positioned according to the profile length and manually fixed. Automatic release of the fixed head after milling and repositioning at the same length for second transom. Vertical and horizontal pneumatic profile clamping system enables optimum work piece fixing. Positioning of the tools with pneumatic feed cylinder. Without changing the cutter set, two different series of transom profiles can be processed. Power supply: 400 V, 3ph, 50-60 Hz Power output: 2,2 kW Max. cutter diameter: 160 mm. Spindle speed: 2,800 r.p.m. Max. routing height: 90 mm. Max. routing depth: 30 mm. Max. profile width: 120 mm. Max. profile height: 90 mm. Air pressure: 6-8 bar Air consumption: 50 l/min. Machine height: 1,150 mm Machine length: 3,150 mm Machine width: 1,200 mm Machine weight: 350 kg
