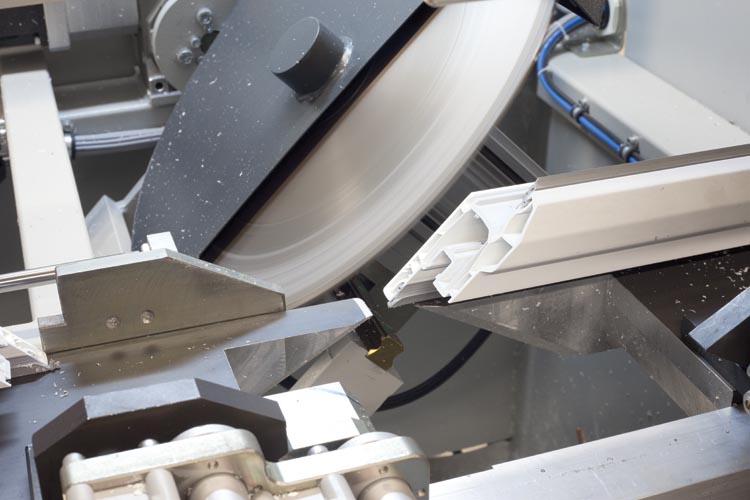

CapacityMin. 160 windows / 8 hours, Max. 180 windows / 8 hours Product CategorySC 223 Get offerGet offer Details Technical Information Video All sawing, routing, drilling, reinforcement steel screwing, marking operations on PVC profiles are gathered in one machine controlled by computer. Stacking of 10 profiles (max. 7,0 m length). Manual barcode labeling system integrated with single-lines. Servo controlled automatic swing of the saw to all angles between 30° and 150° with 0.1° accuracy. 2 spindle motors with 8-axis movement, work on all surfaces of the profile simultaneously. Drain slot routing, drilling and routing at variable angles. Automatic screwing of reinforcement steels. Triple handle drilling with reinforcement steel. 15” touchscreen enables easy control of the machine. High performance industrial PC with Windows XP Embedded operating works needles of fan between 0°C – 55°C. Full integration with various window and door production software. Safe production by means of 3D crash and fault control system developed by Murat Machinery Software Department. Easy production control with the 2nd screen on the transfer station. All error messages can be monitored from the screen by the software developed by Murat Machinery Software Department. By online connection to the entire system, remote detection of malfunctions and maintenance is available.- Dust and chip extraction system. Automatic conveyor belt system to transport scrap profiles to waste container. Central lubrication system eases maintenance. Power supply: 400 V, 3ph, 50-60 Hz Power output: 18 kW, 45 A Max. profile height: 128 mm. Min. profile height: 35 mm. Max. profile width: 125 mm. Min. profile width: 30 mm. Max. raw profile length:7,000 mm. Max. profile processing length: 3,500 mm. Min. profile processing length: 360 mm. Air pressure: 6-8 bar Machine height: 2,000 mm Machine length: 19,000 mm Machine width: 5,500 mm Machine weight: 5,000 kg.
